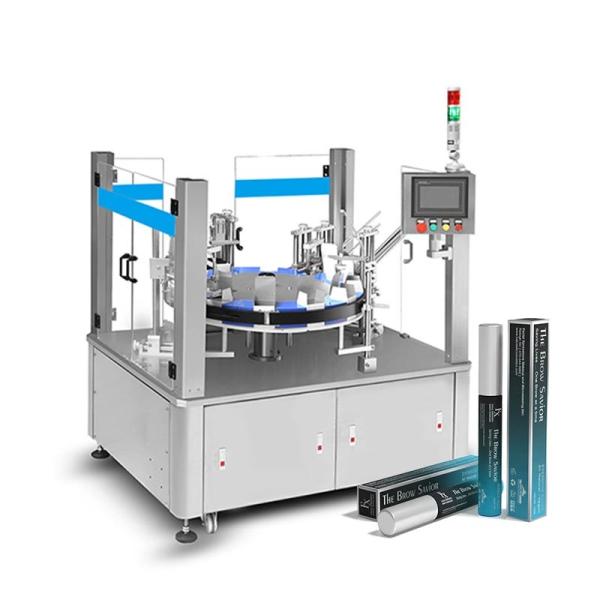

Cbd Oil Dropper Bottle Cartoning Machine 50pcs/Min US304

Name: Cbd Oil Dropper Bottle Cartoning Machine 50pcsMin US304
Brand: LEADTOP
Price: 1 USD

China Cbd Oil Dropper Bottle Cartoning Machine 50pcs/Min US304 wholesale

Brand Name : LEADTOP

Model Number : ZH-50

Certification : CE certification

Place of Origin : China

MOQ : 1 set

Price : discuss personally

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 25 days/month

Delivery Time : 25days

Packaging Details : wooden box

Model : ZH-50

Machine noise : ≤80dB

Capacity : 20-50cartons/min

Power : 1.5Kw

Carton gram requirements : 250-350g/m3

Air pressure : 0.5-0.8Mpa

Contact Now

Machine Information

automatic cartoning machine can achieve full automatic products conveying & feeding, flat carton feeding, carton opening, products pushing, carton folding, carton closing, finished carton package discharging.

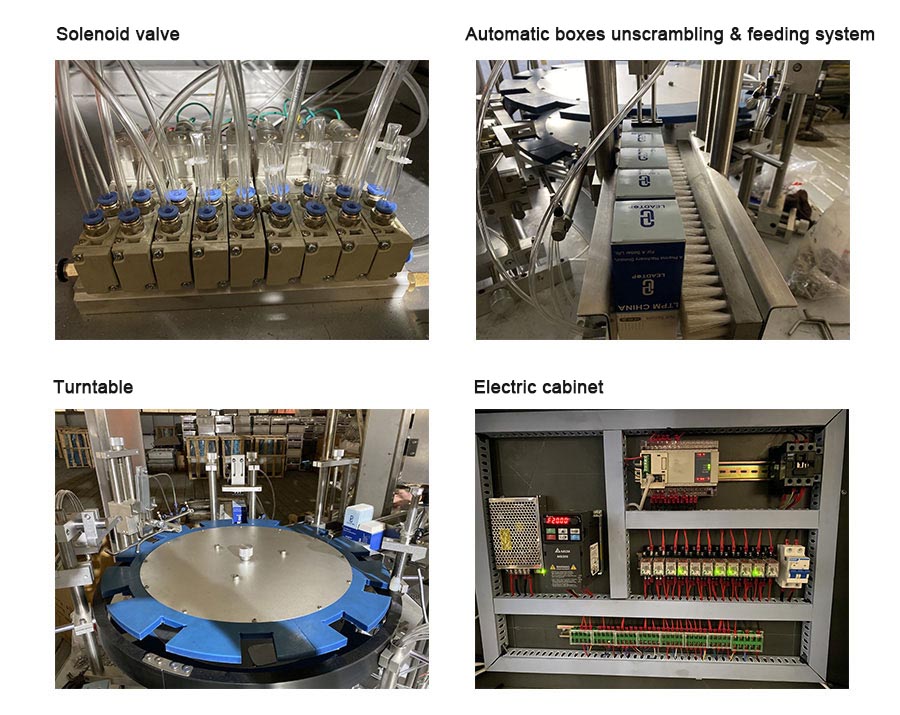

Detailed Images

Operation Sequence;

1.1. Push box to the turntable

1.2. Fold box lower small flaps

1.3. Fold lower box big flap

1.4. Press box lower big flap

1.5. Product fall into box

1.6. Fold box upper small flaps

1.7. Fold box upper big flap

1.8. Press box upper big flap

1.9. Push out box

Solid-steel structure design

2.1. SUS304 materials that meet cG.M.P. or FDA approved material.

2.2. Small footprint is ideal for space sensitive operations.

2.3. Security guarding provides safety operation for the operator.

Cbd Oil Dropper Bottle Cartoning Machine 50pcs/Min US304

Main Technical Data:

Model	ZH-50
Packing speed	30-60 Cartons/min
Carton size range	L(40-100)mm×W(12-60)mm×H(12-60)mm
Carton gram requirements	250-350g/m³
Motor power	1.5KW
Power supply	Three phase 380V 50Hz
Machine noise	≤80dB
Air pressure	0.5-0.8 Mpa
Air consumption	150L/min
Dimension	1100×1500×1900 mm
Weight	250Kg

Cbd Oil Dropper Bottle Cartoning Machine 50pcs/Min US304

Product Tags:

CE Dropper Bottle Cartoning Machine

Dropper Bottle Cartoning Machine 50pcs/Min

SUS304 Bottle Cartoning Machine

Cbd Oil Dropper Bottle Cartoning Machine 50pcs/Min US304 Images
