Product introduction:

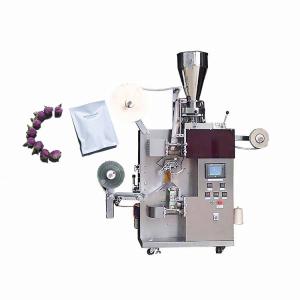

This machine is controlled by microchip computer and assisted with high precision sensors. It’s able to weighing, filling and packaging swift and steady. The structure of this machine is concise and simple, easy to use and able to switch different size of bag former to satisfy different packaging requirement.
Feartures:
1. Multi lanes machine can produce multi lanes bags at same time.
2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine’s work steps.
Detail
Display current or setting temperature
1.Photoelectric Sensor 2.Swing Device (no need to connect this normally)3.Weighing And Dosing Machine
Insert film into bag former and tuck it between the pulling down wheel.Connecting photoelectric sensor if needed.Power up both dosing and packaging machine.
Specifications:
| Item | LTDX-115 |
| Bag size of inner bag | L:50-60mm W:30-80mm |
| Bag size of outer bag | L:60-120MM W:70-90MM |
| Capacity | 20-40bags/min |
| Filling range | 2-12ml |
| power | 220V,50HZ,3.35KW |
| Weight | 700kg |
| Dimension | 1200*850*1900mm L*W*H |
