200KGS Automatic Round Bottle Labeling Machine AC220V
The Scope of Application
The model DPM-A top surface labeling machine suit for box,carton,bags,container,cups and so on.
Equipment function characteristics
1) Control system: German SIEMENS PLC control system, with stable operation and extremely low failure rate.

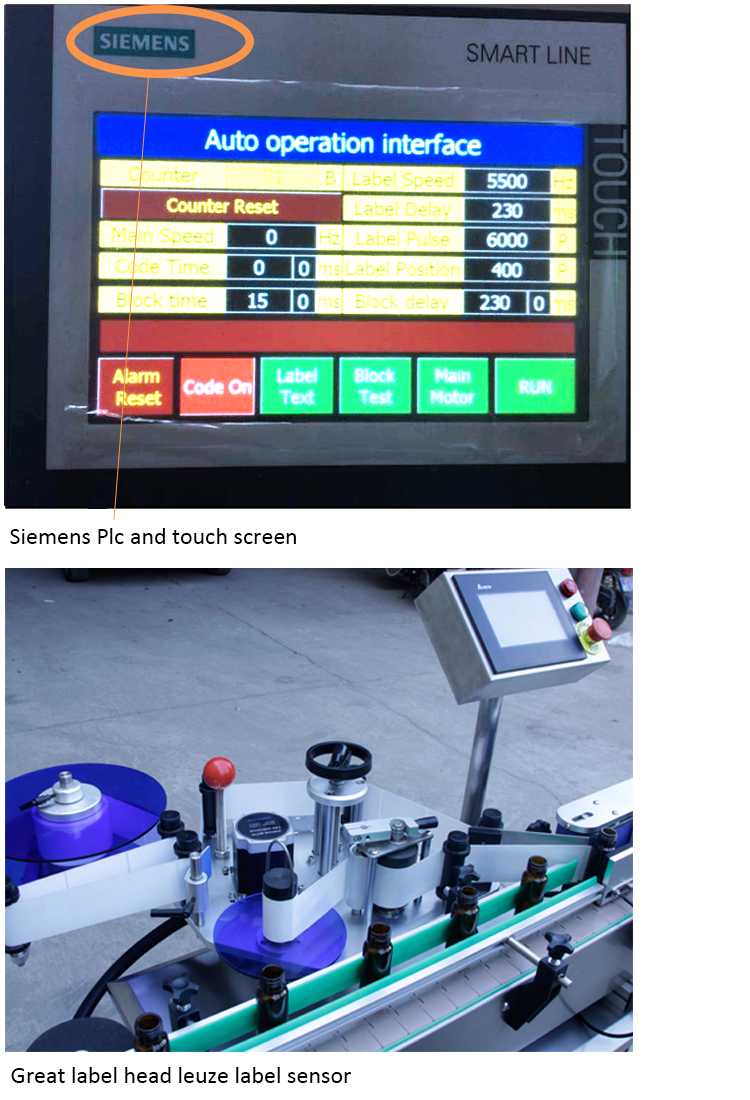

2) Operation system: German SIEMENS 7 inch touch screen, directly visual interface easy operation, with Chinese and English language, also rich with help function and fault display function.
3) Labeling system: The whole labeling engine use German Avery brand , only SKILT with this kinds labeling engine in China, with rather high Competitive Advantage;
4) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
5) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
6) Others:Low voltage circuit all use the German Schneider brand.The bearing use IKO .
Advantages
Stable-Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.
Easy Operation-The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.
High precision-Accuracy from +-0.5-1mm.
wide application range-Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm. to 300mm,If customized height of 10mm-150mm,length of 15mm-300mm, please kindly ask us.
High speed-Speed max can reach 150bottles per min subject to the label size and bottle size.
Europe standard-The labeling machine is made according to CE standard, Taiwan technology.
Technical Parameters:
| Model | MT-130D |
| The standard system | Step Motor |
| Capacity | 20-130 carton/min |
| Operating Direction | Left or right |
| Label speed | ≤35 m/min |
| Tags volume inner diameter | 76 mm |
| Tags volume outer diameter | 350 mm (max) |
| Label Specifications | Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand) |
| Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
| Weight | 200KGS |
| Total motor power | 800W |
| Power supply | AC220V 50/60HZ Single phase |
| Size appearance (mm) | 2200 (L) 1800 (W) 1500(H) |
Detailed Images
