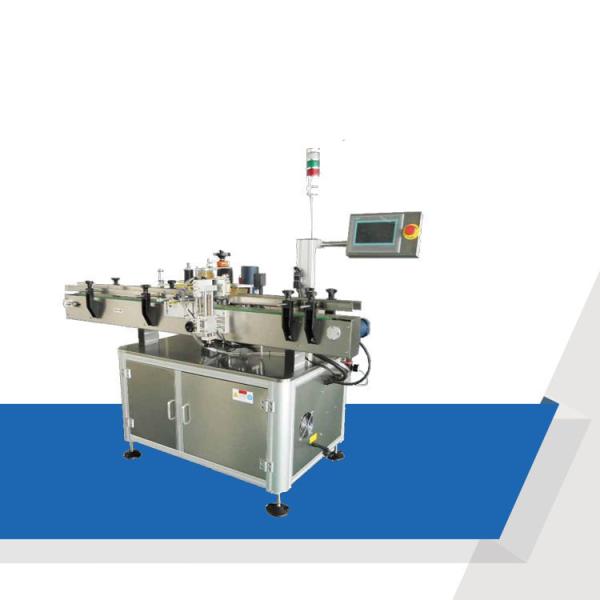

25mm Automatic Labelling Machine MT 130D Beer Bottle Labeling Machine

Name: 25mm Automatic Labelling Machine MT 130D Beer Bottle Labeling Machine
Brand: LTPM China
Price: 1 USD

China 25mm Automatic Labelling Machine MT 130D Beer Bottle Labeling Machine wholesale

Brand Name : LTPM China

Model Number : MT-Series

Certification : CE, GMP

Place of Origin : China

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 25sets/month

Delivery Time : 25days

Packaging Details : Export standard wooden case

Voltage : 220V/380V, 50/60Hz

Capacity : 20-130 carton/min

Bottle diameter : 25-134mm

Type : Labeling Machine

Condition : New

Usage : Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc

Key Selling Points : Easy to Operate

Warranty : 5 years

Contact Now

Product Overview

It can be used to label all kinds of card pouch, anti-static bag and paper piece. It is suitable for unfolded carton labeling. The labeling precision is stable, the press roller is used to caress the workpiece, the transportation is stable, no warping, and the labeling precision is guaranteed.

Specification:

Adopting Germany SIEMENS PLC control

Adopting easy operation large touch screen

Adopting Germany label sensor

Adopting Japanese object sensor

All machines are made of SS#304 The machine can be equipped with coding machine (optional)

Features:

The machine is made in SUS304 stainless steel and high grade aluminum alloy.

Imported step motor or servo motor is used for the labeling head to assure labeling speed and accuracy.

The photo electricity and control system apply advanced component from Germany or Japan or Taiwan.

Use PLC man-machine interface control system, which is easy to understand.

Technical Parameters:

Model	MT-130D
The standard system	Step Motor
Capacity	20-130 carton/min
Operating Direction	Left or right
Label speed	≤35 m/min
Tags volume inner diameter	76 mm
Tags volume outer diameter	350 mm (max)
Label Specifications	Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy	±1.0mm (subject to the roughness of the plane)
Weight	200KGS
Total motor power	800W
Power supply	AC220V 50/60HZ Single phase
Size appearance (mm)	2200 (L) 1800 (W) 1500(H)
