Silicon Chocolate Small Cosmetic Tube Sealing Machine Fast Filling Speed

LeadTop Pharmaceutical Machinery Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

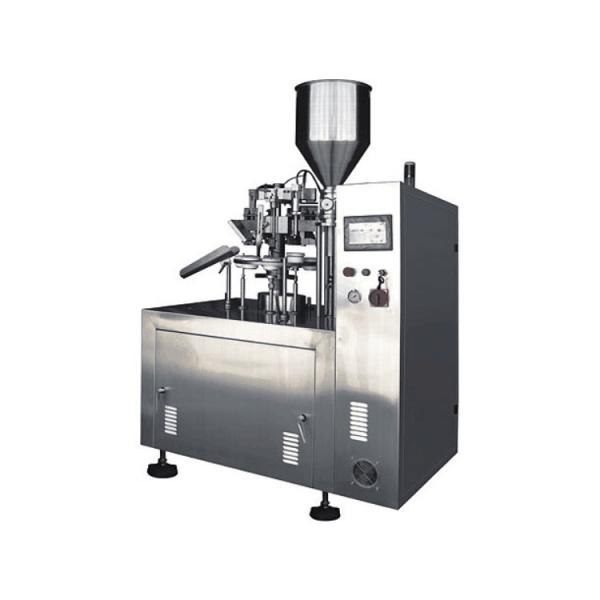

Silicon Chocolate Small Cosmetic Tube Sealing Machine Fast Filling Speed

Brand Name : LEADTOP

Model Number : LTRG-60

Certification : CE certification

Place of Origin : China

MOQ : 1 set

Price : discuss personally

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 25 days/month

Delivery Time : 25days

Packaging Details : wooden box

Model : LTRG-60

Tube Material : Aluminum Tube

Filling Speed : 30-80 pcs/min

Tube Length : 50-240mm (customizable)

Filling Volume : 3-350 ml

Production Speed : 70-95 pcs/min

Contact Now

Glue grease silicon chocolate small cosmetic automatic toothpaste plastic and sealing tube filling machine

Introduction
A semi-auto soft tube filling and sealing machine is mainly used for plastic tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food and chemical etc.
This LTPM CHINA MACHINE is a 2 heating heads sealing filling machine. It has 8 positions for filling and sealing. Materials such as paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste etc., are all applicable.

Application
The machine can automatically feed tube, orientate eye marks and is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then sealing them, pressing data or product numbers on the end of the tube and cutting the end. This machine is widely used in daily cosmetics, medicine and food industries.
Machine Features
1. Compact Design for Minimum Floor Space
2. Heavy Duty Stainless Steel Frame Construction
3. Intelligent Temperature Control and Cooling Systems
4. Convenient and Swift Adjustment of filling volume via Hand Wheel
5. Control pane Touch&screen with all the main functions
6. Automatic tube loading from the tube magazine (Optional)
7. Automatic tube orientation (Optional)
8. Diving nozzle for an accurate dosage of the bottom of the tube
9. Mechanical jaw closing system for aluminium tubes, with simple or double fold
10. Hot jaws for politene, laminated and polyfoil tubes
11. Hot air sealing system for politene, laminated and polyfoil tubes
12. Axomatic machine can work up to 45mm plastic tubes

Main technical parameters
Model
LTRG-100
Production Speed
70-95 pcs/min
Filling Quantity
3-180 ml
Dosage Precision
≤±1℅
Tube Diameters Sealed
ф12-ф35mm
Power Supply
380V/50Hz 1.5KW
Air Consume
<0.6m3/min
Dimensions(L×W×H)
2450×1200×2100 mm
Weight(kg)
1500kg

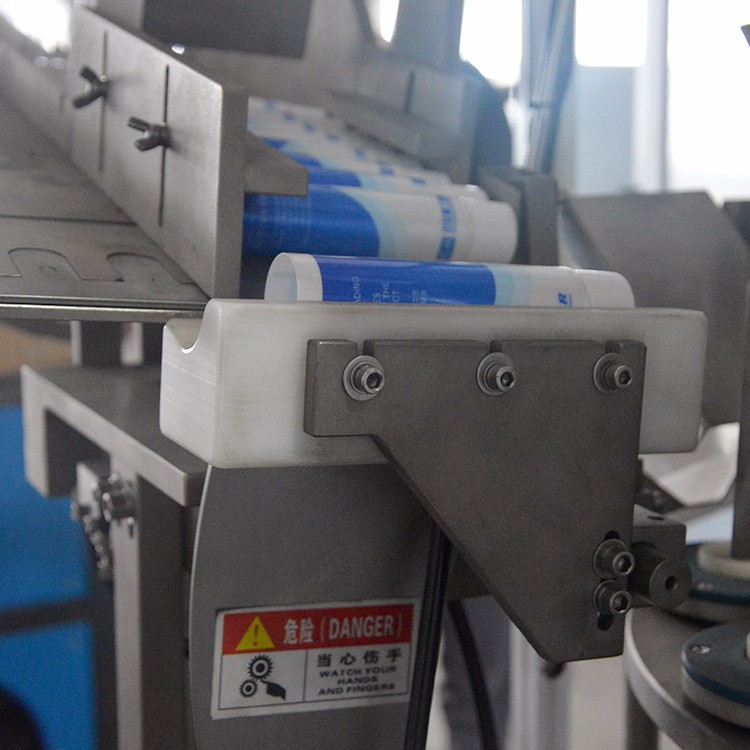

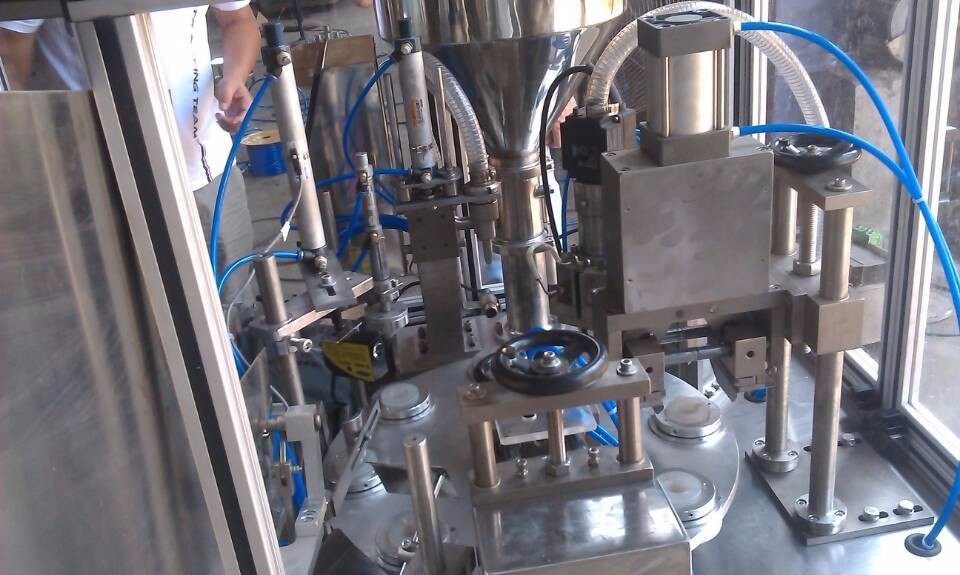

Detailed Images
Silicon Chocolate Small Cosmetic Tube Sealing Machine Fast Filling Speed
Silicon Chocolate Small Cosmetic Tube Sealing Machine Fast Filling Speed
Silicon Chocolate Small Cosmetic Tube Sealing Machine Fast Filling Speed
Silicon Chocolate Small Cosmetic Tube Sealing Machine Fast Filling Speed
